How to Design a FPC Board?

We are professional manufacturers of flexible printed circuit boards (FPC), specializing in the production of FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCBs, and printed circuit assembly. Our services include circuit card assembly and more.

Product Description:

• Product Model: HQ00512

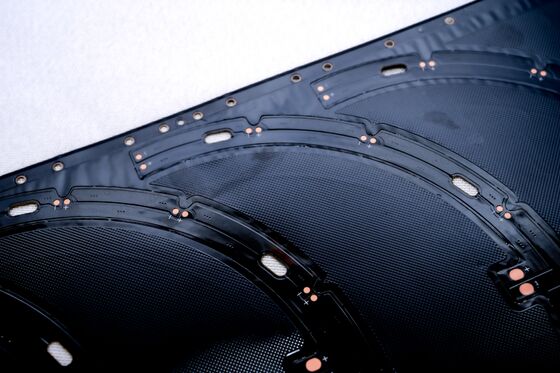

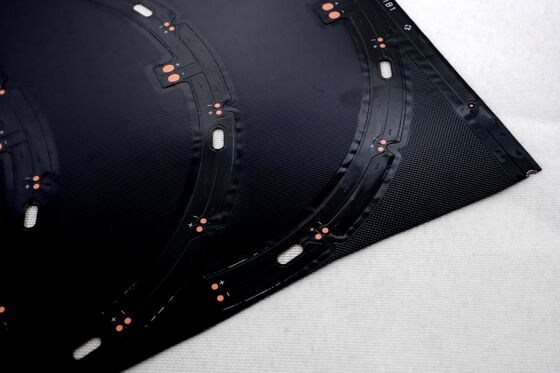

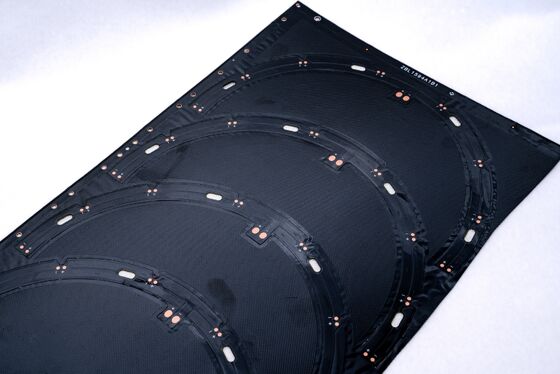

• Product Name: curved plate
• Features: Double-layered board with double-sided film coating, white baseboard, black text, and OSP anti-oxidation treatment.

Product Specifications:

1. Customization Options:
   As a manufacturer of flexible PCBs and FPC boards, we tailor materials to meet specific thickness requirements and process needs. We offer single-sided, double-sided, and multi-layered LED strip FPCs for various applications.

2. Flexibility and Durability:
   Our FPCs exhibit excellent flexibility and resistance to bending. Each batch undergoes rigorous testing with a professional bending tester before mass production, ensuring tens of thousands of bend cycles without failure.

FPC Design Parameters:

1. Dimensions:

   • Precision FPC: Maximum size: 240mm x 500mm (up to 250mm x 500mm), with no minimum size restriction.
   • Roll material board: Maximum width: 240mm, maximum length: 100 meters.

2. Number of Layers:

   • Single-layer boards are simple in structure and ideal for industrial control and electronic instrument applications.
   • Double-sided boards feature two layers of copper foil with increased vias, forming conductive pathways suitable for complex circuits in mobile devices, automotive instruments, and similar products.

3. Solder Mask Colors:
   Options include yellow, black, and white.

   • Yellow is recommended for general-purpose applications, such as cable products.
   • Black is commonly used in high-end or light-absorbing products (e.g., cars, phones, LED displays).
   • White includes an additional reflective coating, making it ideal for lighting fixtures, LED displays, medical aesthetics, and similar applications requiring reflection.

4. Copper Foil Thickness:

   • Precision FPC single panels: 18µm (0.5oz) or 35µm (1oz).
   • Precision FPC double-layer boards: 12µm (0.33oz), 18µm (0.5oz), or 35µm (1oz).
   • Standard FPC single panels: 18µm/25µm/35µm (1oz)/50µm.
   • Standard FPC double-layer boards: Options include 18-25µm, 25-25µm, 35-35µm, or 35-70µm.

5. Minimum Line Width/Spacing:
   While smaller dimensions are possible, they increase the risk of defects. It is generally recommended to use at least 3mil for line width and spacing.
